Chain-Link Double Swing Driveway Gate in Houston, TX
A galvanized steel double swing chain-link driveway gate in 12ft width — the most widely installed residential driveway gate in Houston for its unbeatable value and durability.
Get a Free Estimate(346) 639-4333
Overview
About the Chain-Link Double Swing Driveway Gate
A chain-link double swing driveway gate consists of two matching gate panels hinged from opposite posts, each panel approximately 6 feet wide to total a 12-foot opening — the standard two-car driveway width in Houston. The galvanized steel pipe frame with rounded corners and chain-link mesh infill creates a lightweight but structurally rigid gate that can swing open manually or via an automated gate operator.
The 12-foot double swing chain-link driveway gate is Houston's most commonly installed residential gate type — it accounts for the majority of driveway gate installations in subdivisions across Katy, Pearland, League City, and Humble. The rounded-corner frame treatment elevates the appearance over standard square-cut gates, providing a finished look at minimal additional cost.
Materials & Construction
Frame: 2-inch OD galvanized Schedule 40 steel pipe, welded and bent to rounded corners. Mesh: 11 gauge galvanized chain-link, 2-inch diamond. Diagonal bracing on each panel. Hardware: heavy-duty gate hinge adjustable post clamps, galvanized cane bolt (bottom receiver), fork latch with padlock capability. Posts: 2-1/2 inch or 3-inch OD galvanized pipe in concrete.
All chain-link components are hot-dip galvanized per ASTM A392 specification. Galvanized coating weighs 0.8 oz/sq ft (Class 1 zinc), providing 20-35 year corrosion protection in Houston's coastal climate. Vinyl-coated (black or green) versions add an additional polyvinyl chloride coating over the galvanized substrate for extended service life and improved appearance.
Key Features
12ft Standard Width
Two 6-foot panels open to a full 12-foot clear opening — sufficient for two cars side by side or a single large truck/RV. Standard width for Houston two-car driveways.
Rounded Corner Detail
Rounded pipe corners give the gate a finished, professional appearance rather than the utilitarian look of sharp-cut frames. Same structural performance, notably better curb appeal.
Automation Compatible
The lightweight chain-link panels are ideal for swing gate operators — requiring a smaller motor than heavy iron or wood gates of the same width. LiftMaster and Mighty Mule operators compatible.
Automation Ready
All chain-link driveway gates can be fitted with slide or swing gate operators. Chain-link gates are lightweight relative to their span — reducing motor requirements and extending operator lifespan versus heavier solid panel gates.
Low Maintenance Cost
Galvanized chain-link gates require no painting or sealing. Annual inspection of hinges, rollers, and latch mechanism is the only maintenance needed. Vinyl-coated versions require even less — just hose off periodically.
Free Estimates
Written estimates within 24-48 hours. 18-month no-interest financing available. We handle all permits for residential and commercial chain-link gate projects.

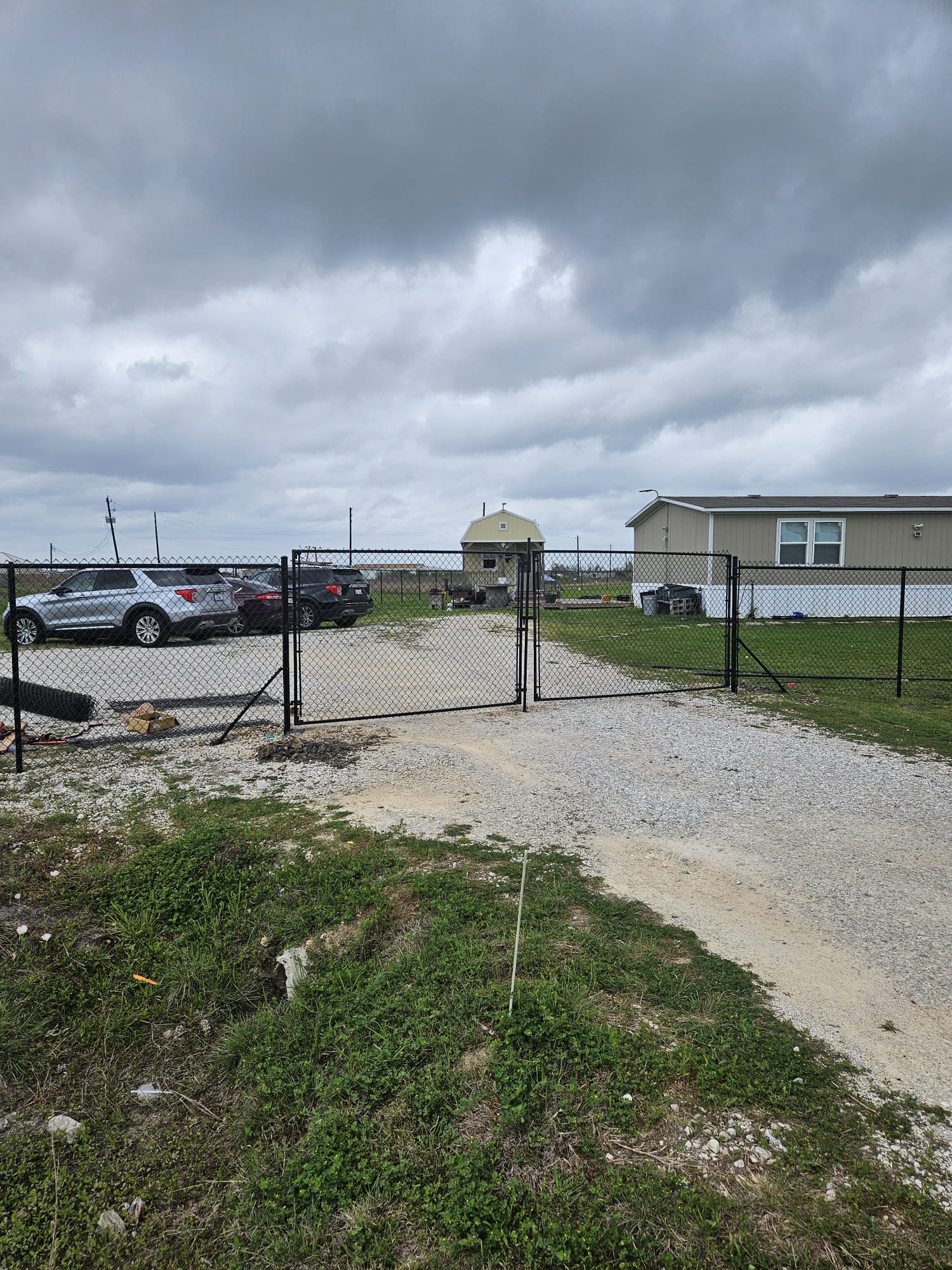

See Our Chain-Link Gate Installations
Pricing in Houston, TX
Chain-link double swing driveway gates in Houston typically range from $900 to $1,800 installed (gate only). Automation adds $800-$1,400. Free written estimates within 24-48 hours. 18-month no-interest financing available.
Serving All of Greater Houston
Houston · Katy · Sugar Land · The Woodlands · Pearland · Baytown · Cypress · League City · Humble · Spring · Pasadena · Richmond · Conroe · Galveston · Bellaire · River Oaks · Memorial · Friendswood · Tomball · Deer Park
Frequently Asked Questions
How heavy is a 12ft chain-link double swing driveway gate?
A standard 12ft galvanized chain-link double swing gate weighs approximately 60-90 lbs total (30-45 lbs per panel), depending on mesh gauge and frame weight. This is much lighter than comparable iron (250-350 lbs) or wood (120-180 lbs) gates.
Can a chain-link driveway gate be automated?
Yes — chain-link swing gates are among the easiest to automate due to their light weight. Standard residential swing gate operators (LiftMaster LA412, Mighty Mule FM500) are suitable for 12ft chain-link gate systems.
What does a chain-link double swing driveway gate cost in Houston?
Chain-link double swing driveway gates in Houston typically range from $900 to $1,800 installed (without automation). Adding a swing gate operator adds $800-$1,400 to the total.
